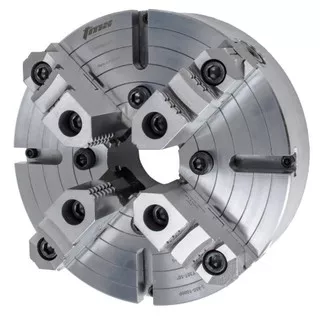

TMX Lathe Chuck, 4-Jaw, 10in - 3-855-1000P

TMX Lathe Chuck, 4-Jaw, 10in – 3-855-1000P

Original price was: $1,497.00.Current price is: $1,080.80.

45 in stock

SKU: 3-855-1000P Category:

Description

TMX Lathe Chuck, 4-Jaw, 10in3-855-1000P

4-Jaw (Solid) Independent Forged Steel Body Chuck Plain Back 10inTMX by ToolmexMADE IN POLAND

Features:

  • Four-jaw standard duty independent Lathe Chucks with solid reversible jaws, spheroidal graphite iron body.
  • The jaws are made of high quality carbon steel and hardened. Thrust bearings and operating screws are case hardened steel.
  • These chucks feature jaws that are individually adjustable, allow firm gripping of odd shaped work and the jaws allow a square component to be perfectly centered to the chuck while achieving maximum gripping force.

Technical Data:

Selling Unit   EA
Chuck Type   Independent
Chuck Size in 10
Body Material   Forged Steel
Number of Jaws   4
Jaw Type   2pc
Weight lb 57.8
Mount Type   Front
RPM max RPM 2000
D in 10
B in 5.9055
C in 0.2756
E in 2.5591
F in 4.126
H in 3.0512
H1 in 2.378
S   4xM12

See all TMX Lathe Chucks, 4-Jaw
