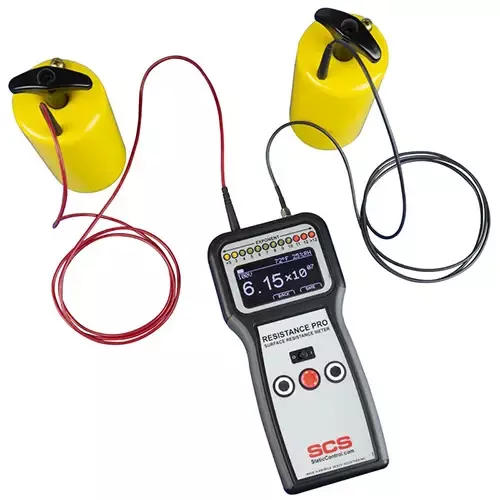

Digital Compliance Verification Surface Resistance Meter Kit
Measures resistance point-to-point (Rtt) and resistance-to-ground (Rtg) of worksurfaces, flooring systems, garments, packaging, and other materials in accordance with ESD Association documents: ESD TR53, ANSI/ESD S4.1, ANSI/ESD S7.1, ANSI/ESD STM97.1 and others
Large OLED Display
Displays resistance mantissa and exponent, temperature, relative humidity and test voltage
Internal memory stores and recalls up to 100 measurements: captures resistance, temperature, humidity and test voltage
Measurement stability modes sets the 15-second electrification period for test requirements
Includes electrode spacers to spaces the 5 lbs. electrodes to 10 and 36 inches for resistance point-to-point (Rtt) measurement requirements of ANSI/ESD S.1 and ANSI/ESD S4.1
Includes measurement location labels (Pack of 25), to label and track areas and materials measured for surface resistance
Resistance Range: 1.0 x 103 to 1.0 x 1012 Ohms
Determines if a surface is conductive, dissipative or insulative for ESD control applications in electronics manufacturing or handling environments
Under Load Test Voltages (10V or 100V ±5%), meets ANSI/ESD S20.20 resistance testing requirements for product qualification and compliance verification
