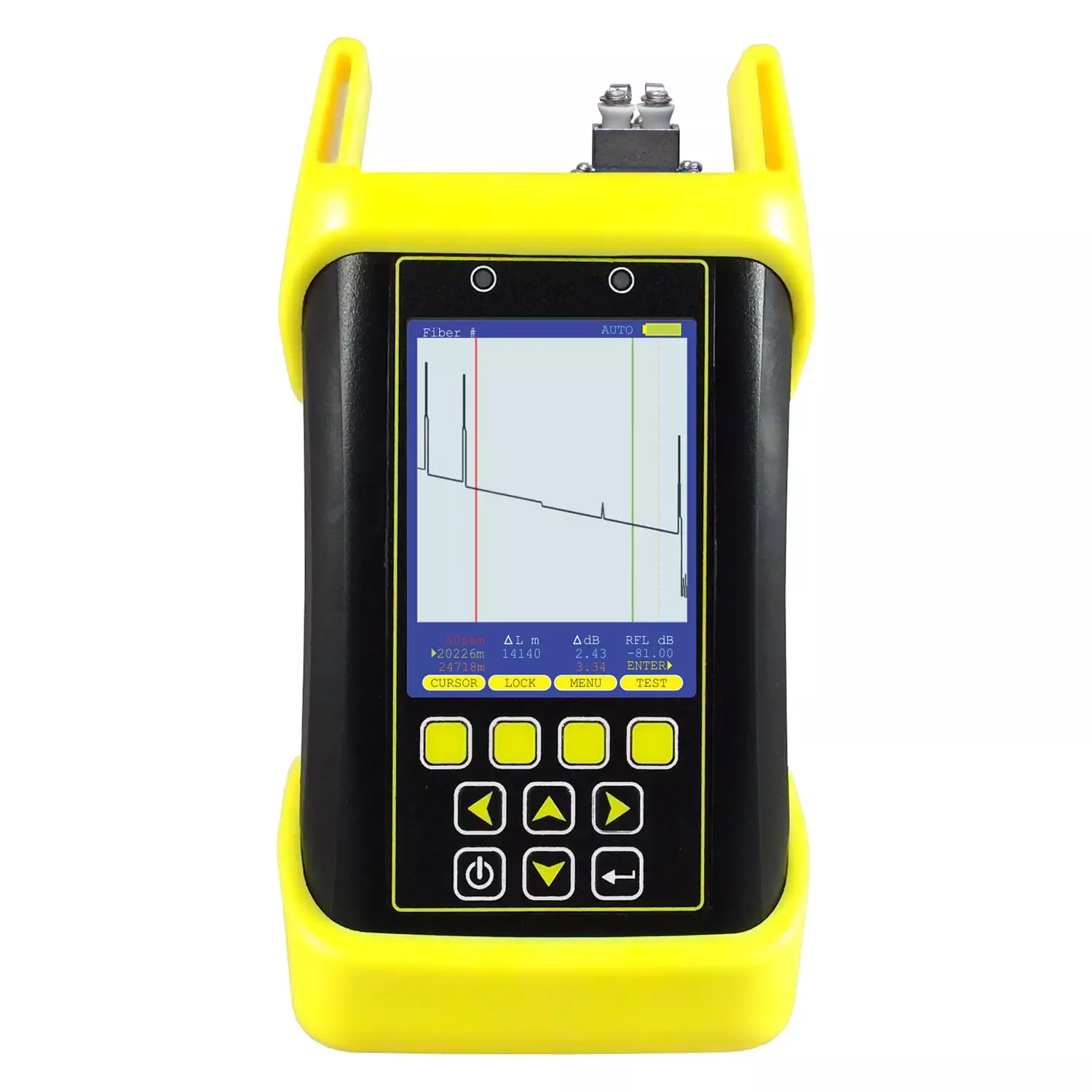

Optical Wavelength Labs WTO2-S13

Description

Applications:

• Optical fault location in singlemode fibers
• Loss measurement of reflective and backscatter events
• Link attenuation measurement
• Reflectance measurement of reflective events
• Optical fiber length measurement

Features:

• 2.8 in. color LCD display automatically rotates based on orientation of OTDR (portrait vs. landscape)
• LIVE MODE allows users to expand OTDR display onto larger laptop screen
• Automatically locates events and places them in an internal event table
• Full horizontal and vertical pan/zoom function
• User-selectable parameters such as index of refraction, test mode, pulse width, and averaging
• Integrated help screens for user
• USB interface for downloading stored readings
• Integrated visual fault locator
• Re-chargeable Lithium Polymer battery
• Up to 20 hours battery life for normal usage
• Supplied with OWLView for OTDR software
• Prints OTDR trace reports and stored OTDR readings on hard disk for later retrieval

Specifications:

• Output Wavelength: 1310nm
• Dynamic Range: 28 dB
• Event Dead Zone: 2 meters (typical)
• Attenuation Dead Zone: 5 meters (typical)
• User-Selectable Pulse Width: 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000 meters
• Distance Range: 80 miles (128 km)
• OTDR Port: LC
• VFL Port: LC
